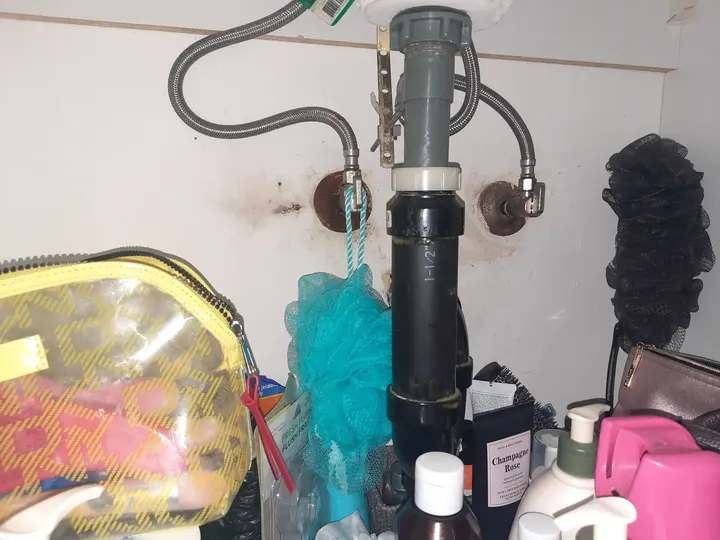

Fixture and service review
Confirm proposed fixtures, equipment, available water service, sanitary connections and existing constraints.
Plumbing engineering.
Water distribution, drainage and venting design coordinated with fixtures, equipment and the building layout.
Request a scope and quote
Plumbing routes and capacity have to work with the building that surrounds them.
Fixture demand, available services, gravity drainage, venting, structure and room layouts all shape the design.
Kernel coordinates plumbing requirements with architectural, structural and mechanical work before the drawings are issued.
How the work is carried through.
The steps below show how observations, calculations, drawings and field support connect for this service.
Sizing and system layout
Develop supply, sanitary and vent layouts with the sizing and slopes required for the defined scope.
Permit drawings and schedules
Issue plumbing plans, riser information, notes, details and fixture schedules required for review.
Coordination and support
Coordinate sleeves, penetrations, equipment connections and field questions within the engaged scope.
Typical services and project conditions.
Residential
- Bathroom and kitchen alterations
- Secondary units
- Additions and new homes
- Water-heating coordination
Commercial
- Restaurants and commercial kitchens
- Tenant fit-outs
- Fixture-count coordination
- Equipment water and drainage connections
Typical deliverables
- Water and drainage plans
- Riser information
- Fixture and equipment schedules
- Permit response and field clarification
Tell us which fixtures, equipment and spaces are changing.
Kernel will confirm the plumbing calculations, drawings and coordination required for the project.
